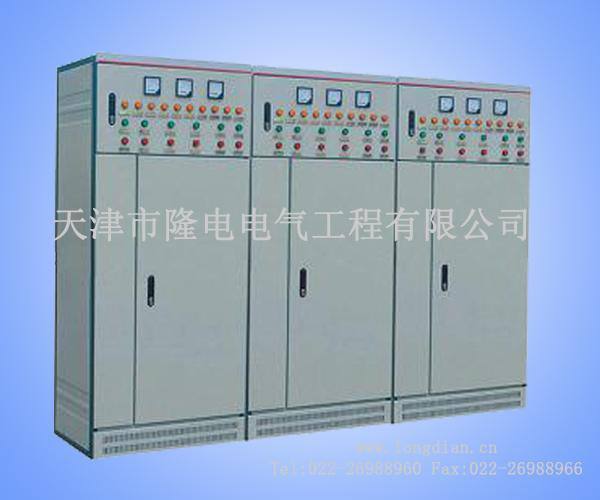

1. XL-21 type power distribution cabinet is the new type of electrical components, with a compact structure, high sealing performance, easy maintenance, line scheme can be flexible, and other characteristics. Power cabinet in addition to air circuit breakers and fuses as short circuit protection, but also equipped with contactor and thermal relay. Indicator meter, operation button and indicator light can also be installed on the front door. A busbar chamber can also be installed on the cabinet suitable for multiple parallel installation, which is made of steel plate with height 300 mm.

2. The front door and back door can be opened.

3. The cabinet body is made of 2.0MM thick cold-rolled carbon steel plate and stainless steel material with anti-corrosion and higher mechanical strength.

4. Installation: landing installation.

5. Instllation with beam. Vertical beam position can be adjusted to provide adequate space for users.

6. Inlet and outlet mode are flexible: lower-lower, lower-upper, upper-upper, upper-lower.

7. With temperature and humidity control device.

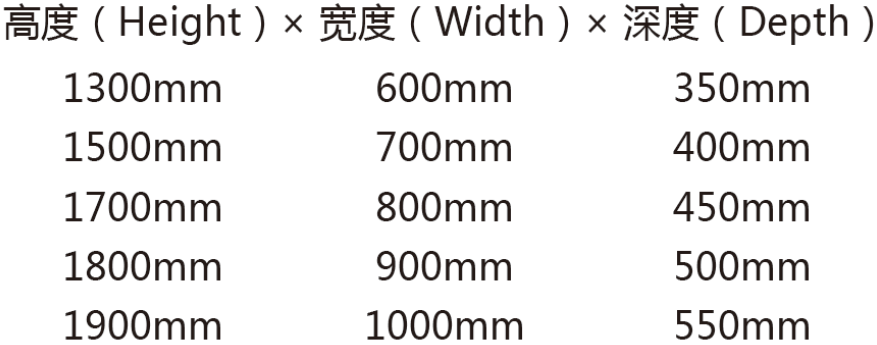

柜體尺寸

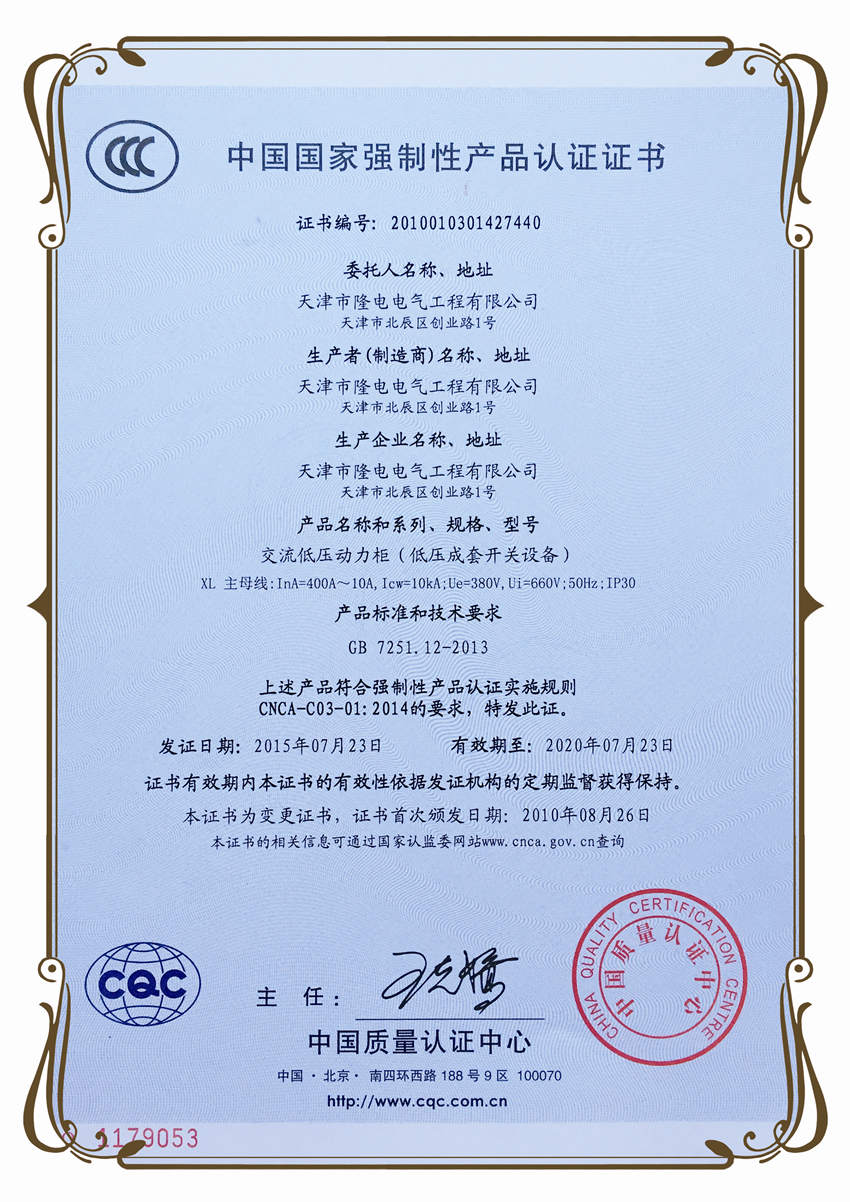

中國國家強制性產品認證證書

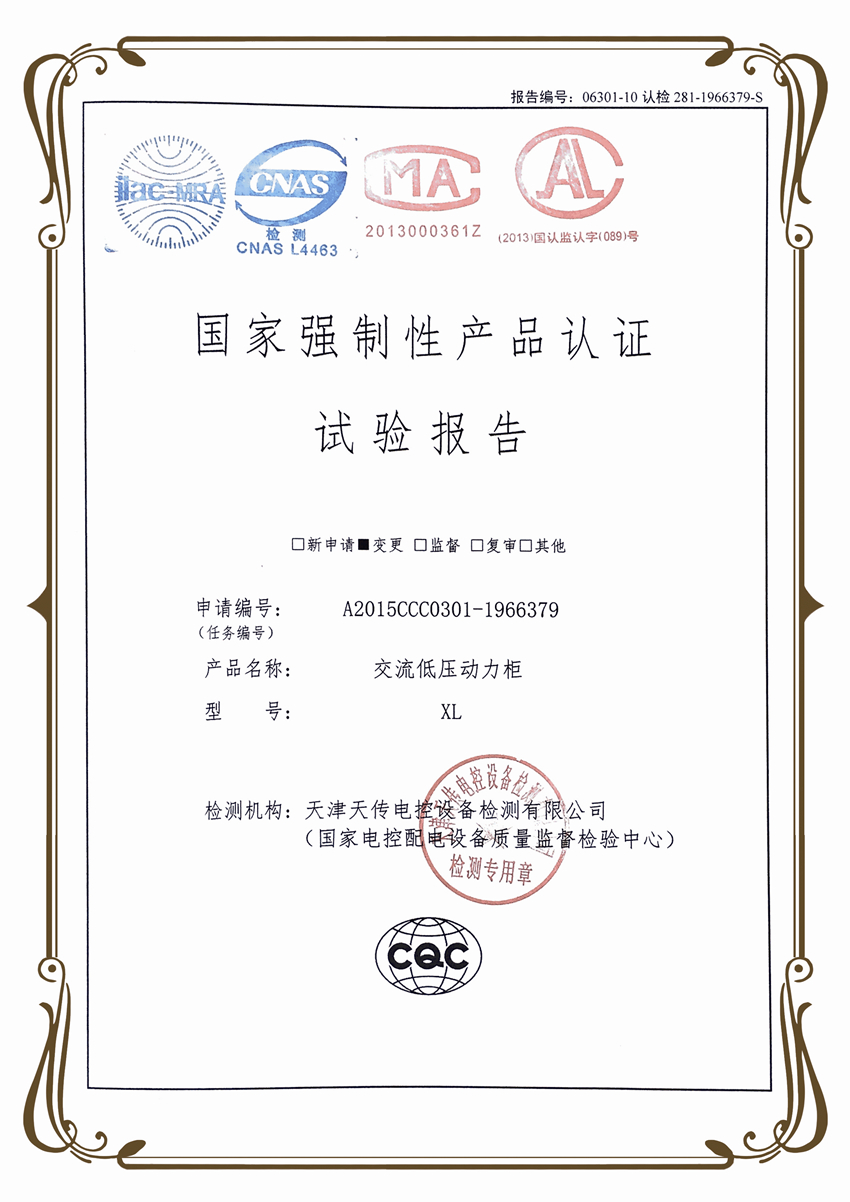

國家強制性產品認證試驗報告
