1.Suitable for steel wire armored, metal strip armored PVC or rubber insulated cables;
2.In usage, fill stuffing into gap between conductors to avoid gas leakage from cable cores;
3.Water-proof, can be used in various environments;
4.Protection grade can reach IP66;
5.Used in explosive gas atmosphere zone 1 、zone 2 and explosive dust atmosphere zone 21
、zone 22;
6.Explosion-proof grade: Exd Ⅱ C Gb、Exe Ⅱ Gb 、DIP A21;
7.For model Ⅱ, its end thread can be connected with other parts.

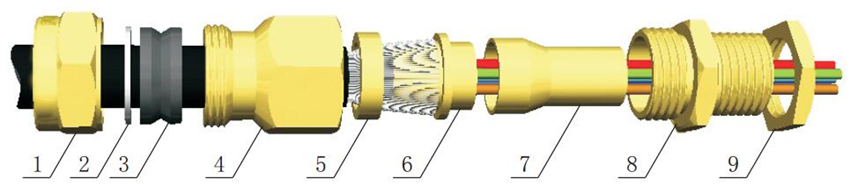

DT系列防爆電纜密封接頭組裝示意圖（Ⅰ型）
Assembly schematic for DT series explosion-proof cable gland (Ⅰ)
1
、密封鎖母
2、止旋墊圈
3
、密封圈
4
、過渡體
5、卡鎧環
6
、卡鎧環座
7
、隔爆筒
8、連接座
9
、鎖母
1.Seal nut
2.Gasket preventing rotation
3.Sealing ring
4.Middle body
5.Ring for locking armor
6.Ring seat for locking armor
7.Flameproof part
8.Connector
9.Nut

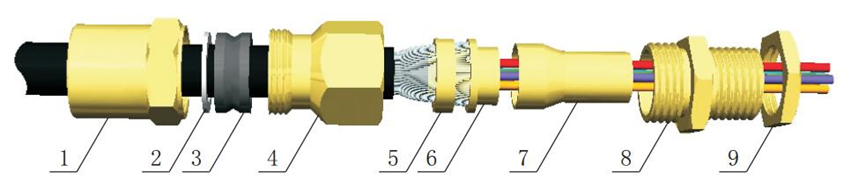

DT系列防爆電纜密封接頭組裝示意圖（Ⅱ型）
Assembly schematic for DT series explosion-proof cable gland (Ⅱ)
1
、帶螺紋密封鎖母
2、止旋墊圈
3
、密封圈
4
、過渡體
5、卡鎧環
6
、卡鎧環座
7
、隔爆筒
8、連接座
9
、鎖母
1.Seal nut with thread
2.Gasket preventing rotation
3.Sealing ring
4.Middle body
5.Ring for locking armor
6.Ring seat for locking armor
7.Flameproof part
8.Connector
9.Nut

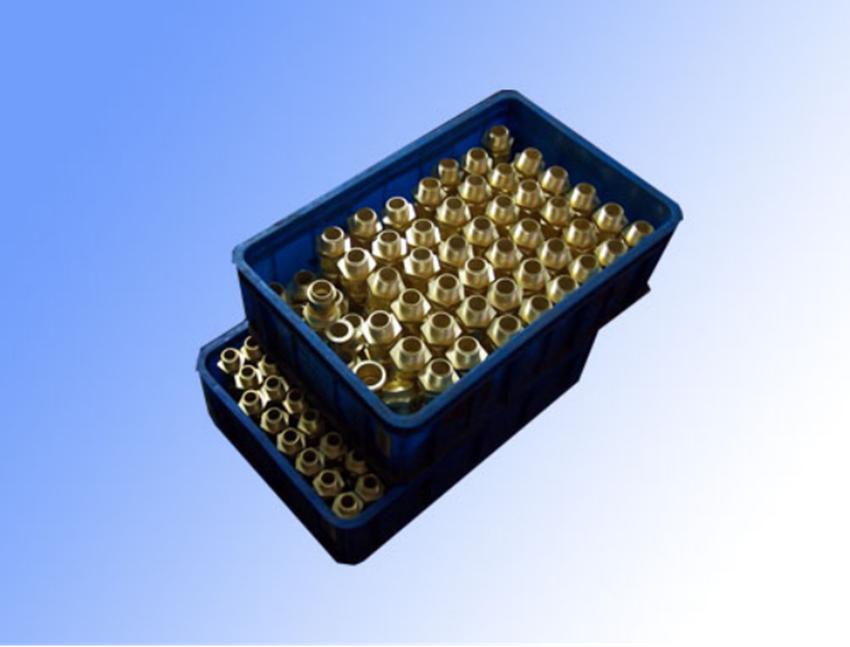

合同編號：15-08-18/LD-C-688
項目名稱：伊朗加藥項目/PO-WF-8-122
材質：黃銅
數量：400套

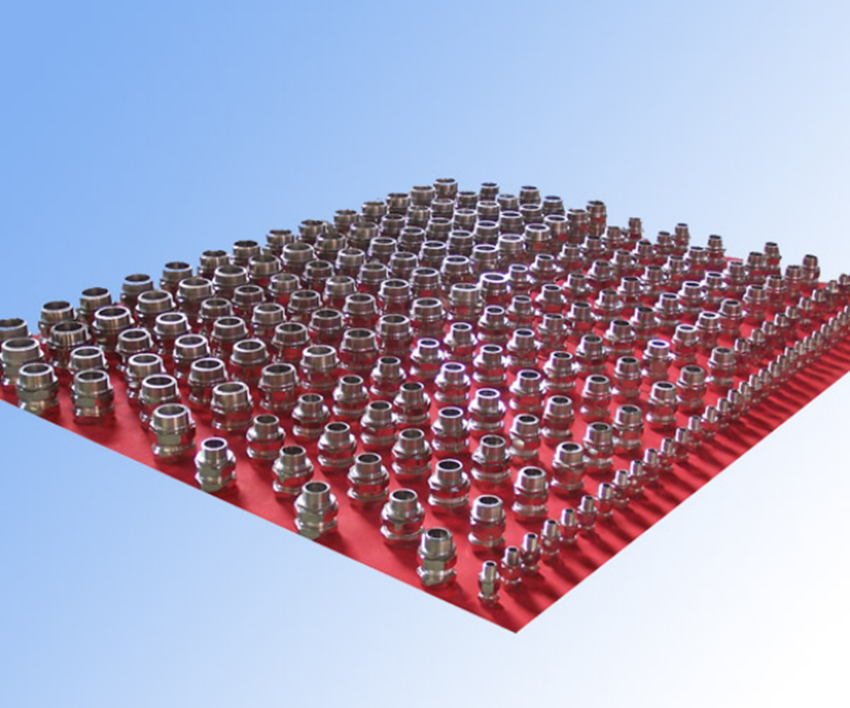

合同編號：15-12-21/LD-C-1049
項目名稱：MV18FPSO-Ehouse
材質：不銹鋼
數量：1160套
